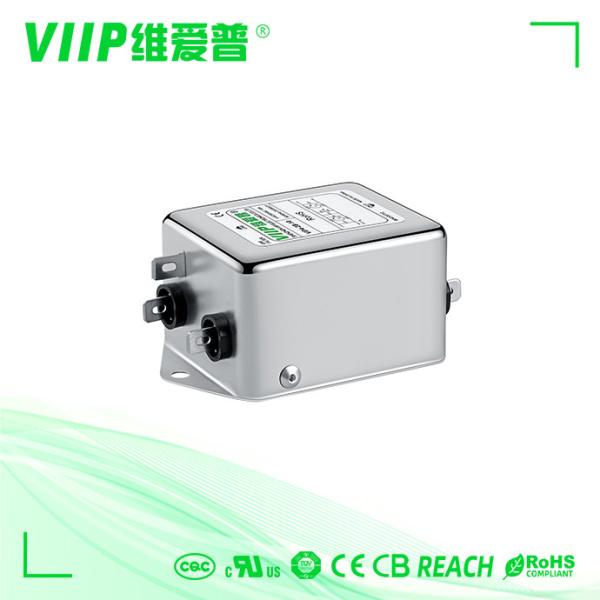

    Single Phase Two Stage AC EMI Filter 20A

    Ask Lasest Price
    Brand Name : VIIP
    Model Number : VIP4-1B-20
    Certification : CE ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pcs within 10-15 days
    • Product Details
    • Company Profile

    Single Phase Two Stage AC EMI Filter 20A

    Single Phase two-stage EMI Filter with enhanced performance For Alarms Security system​ 20A

    Quick Detail:

    ItemPower line EMI Filter
    ModelVIP4-1B-20
    Transfer FunctionLow Pass
    Package TypeSurface Mount
    Nominal Center Frequency150K-30MHZ
    Insertion Loss60~90dB
    Input Impedance50Ω
    Rated Voltage110V/250V
    Rated Current0.5~300A
    Environmental Temperature40°C

    General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument


    Specifications for single phase emi filters:


    General purpose AC filters with good attenuation frequency range 150KHz-30MHz


    VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current


    Compact structure, high performance-cost ratio, easy to install,safe and reliable


    High voltage versions above 380VAC are also available


    tabulates


    Part No.Rated Current [A]250VAC/50Hz @ 20C
    Leakage Current [mA]
    Physical DimensionsElectrical SchematicsTerminalsWeight [g]
    screwterminal blockwires
    VIP1-1A-011A<0.5mAFig 1Fig 1- - -- - -065
    VIP1-1A-033A<0.5mAFig 1Fig 1- - -- - -065
    VIP1-1A-066A<0.5mAFig 1Fig 1- - -- - -065
    VIP1-1A-1010A<0.5mAFig 2Fig 1- - -0- - -75
    VIP4-1B-066A<1.0mAFig 3/Fig4Fig 2M40- - -140
    VIP4-1B-1010A<1.0mAFig 3/Fig4Fig 2M40- - -170
    VIP4-1B-2020A<1.0mAFig 3/Fig4Fig 2M40- - -170
    VIP4-1B-3030A<1.0mAFig 5Fig 2M6- - -- - -320
    VIP4-1B-50SOA<2.0mAFig 5Fig 2M6- - -- - -600
    VIP4-1B-100100A<2.0mAFig 5Fig 2M8- - -- - -1380
    VIP4-1B-150150A<2.0mAFig 5Fig 2M10- - -- - -1900
    VIP4-1B-200200A<2.0mAFig 5Fig 2M10- - -- - -1900

    Applications:

    White household

    Smart home

    Smart terminal

    Power supply

    Power & energy

    Electrical & electronic equipment

    Consumer goods

    medical device

    datacome equipment



    Sample

    Sample Fee: Negotiate

    Sample Time: 3~5 days


    Payment

    ---Payment terms: Western Union, T/T

    ---Please remember to leave the correct contact information for delivery.
