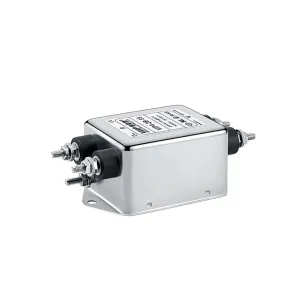

Electronic Equipments 6A 220V EMI Filter For LED applications
faston terminal
Quick Detail:
| Item | Power line EMI Filter |
| Model | VIP4-1A-06 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Frequency Range | 150K-30MHZ |
| MOQ | 1PCS |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 6A |
| Environmental Temperature | 40°C |
This 6A, 220Vac EMI noise suppressor is ideal for LED lighting and
electronic devices, effectively reducing electromagnetic
interference. It comes with FASTON connectors for quick and
tool-free installation.
Key Features:
• Rated for 220Vac, 50/60Hz, with a max current of 6A
• Suppresses EMI noise by up to 35dB (500KHz–30MHz)
• Compact, space-saving design with flame-retardant, halogen-free
materials
• FASTON tabs for easy plug-and-play wiring
• Complies with RoHS and EMC standards
Applications:
• LED lighting (panel lights, downlights, spotlights, floodlights)
• Electronics (computers, servers, medical devices, security
cameras)
• Reduces power line noise, improving equipment stability
• Helps meet EMI/EMC regulatory requirements
This filter ensures clean power by blocking conducted interference
in 220VAC systems, supporting up to 6A load. Its FASTON terminals
simplify setup, saving installation time and effort.
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C
Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| screw | terminal block | wires |
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
